IRIS Upper Room Wall-Mounted UVGI Fixture
Regular price
$0.00
Unit price per
Description

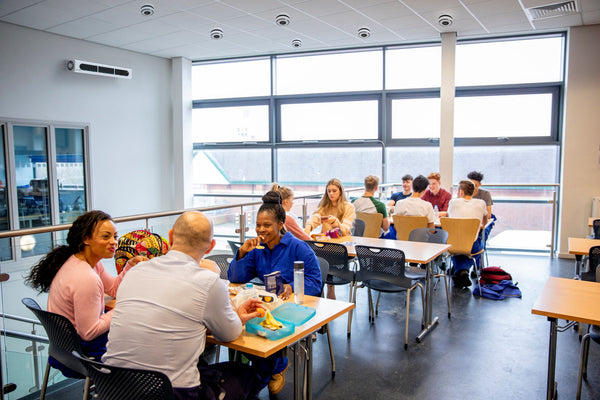

Iris Upper Room reduces bacteria and viruses in the air by creating a 20m2 UVC disinfection zone in the upper part of the room. This zone is above people’s heads and out of harm’s way. PIR motion sensor automatically shuts off the unit if it detects movement in the UVC’s range. Iris circulates the air in through its grille and out both sides, accelerating the speed of air disinfection.
⚠*Please note: WARNING – UV radiation emitted from this device. Unintended use of the device, or damage to the housing, may result in exposure to ultraviolet radiation. Avoid exposing skin and eyes to ultraviolet radiation; may cause irritation. Read the label and any operating manual before using.
Features
- Continuous 254nm air disinfection
- Emits UVC horizontally across the ceiling covering 20m2
- Disinfects the air at a rate of 51.53 CFM
- Fan circulates air to increase disinfection rate

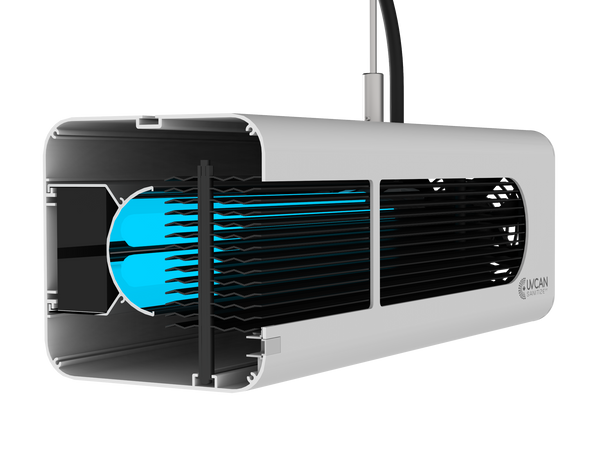

- Aluminum reflector panel inside increases UV intensity
- Single-sided 180° light distribution
Benefits
- UV-C light reduces airborne germs
- UL8802 certified for guaranteed UVC safety standards
- Room occupancy and activities can continue below device
- Engineered with safety in mind: PIR motion sensor shutoff

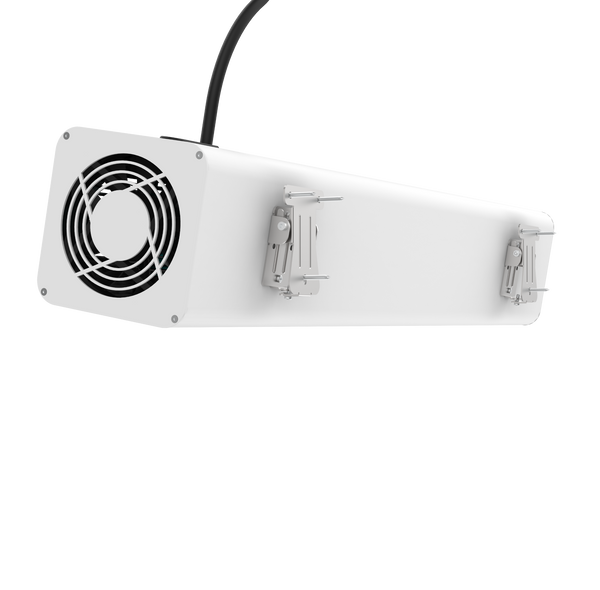

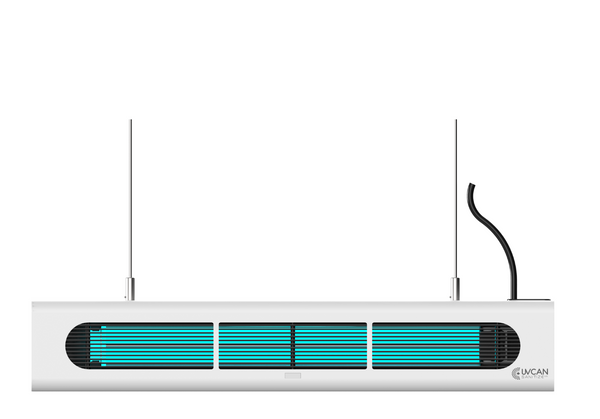

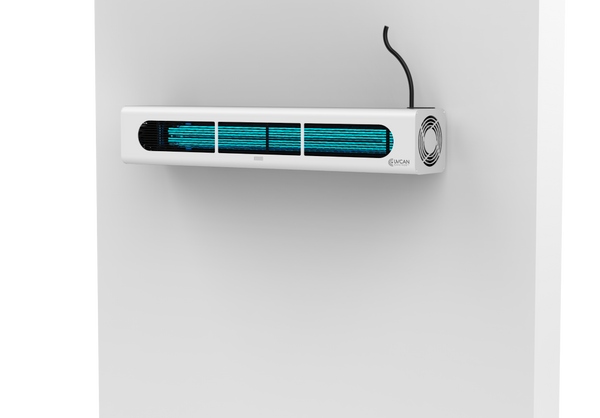

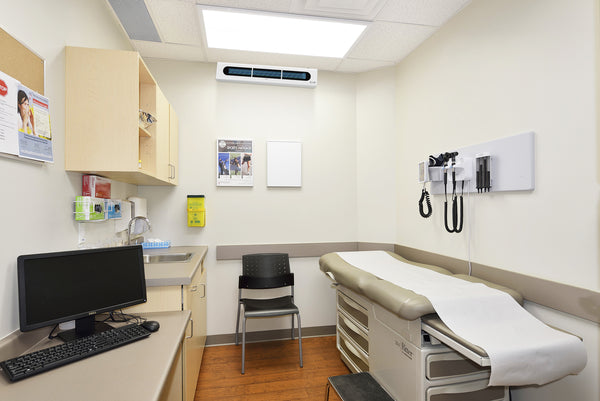

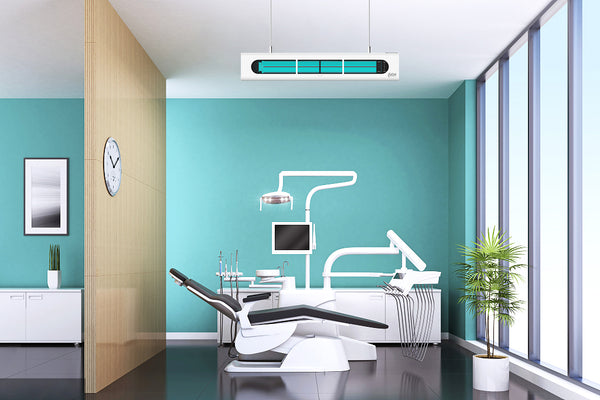

- Install discreetly on the wall or suspended (above 2.3m)
- Low noise output at 40 DB

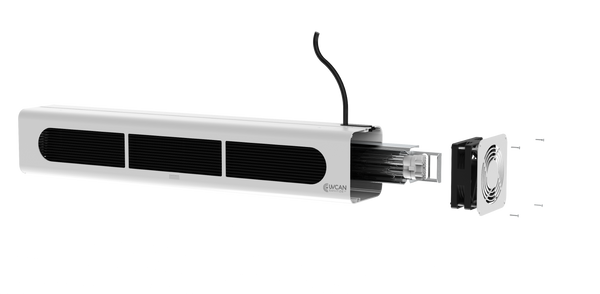

- UVC tubes are easily accessible and replaceable
Applications
|
Reception |
Boardroom |
Salon |
|
Restaurant |

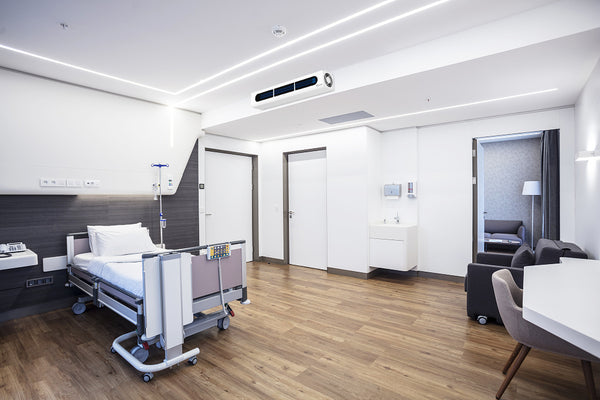

Clinical Room |
Office |
| Studio | Studio | Lounge |
Specifications
| Parameter | Info |
|---|---|
| Input voltage |
AC100-277V |
| Radiation (1m distance) | 17μW/cm² (ambient temperature 25℃) |
| Power | 85W±13W |
| Tube type | 75W H type quartz UV-C tube |
| Wavelength (nm) | 253.7nm |
| UV lifespan (h) | ≥8000h |
| Dimension (cm) | 804*140*140mm |
| Weight (kg) | 6.0 kg |
| Installation height (m) | ≥2.3m |
| Noise (1m distance) |
40DB |
| Best ambient working temperature | +5~+40℃ |
