CYCLAMEN UV-C Air Hybrid Downlight
Regular price
$0.00
Unit price per
Description
*Now available in Canada, the USA, and internationally

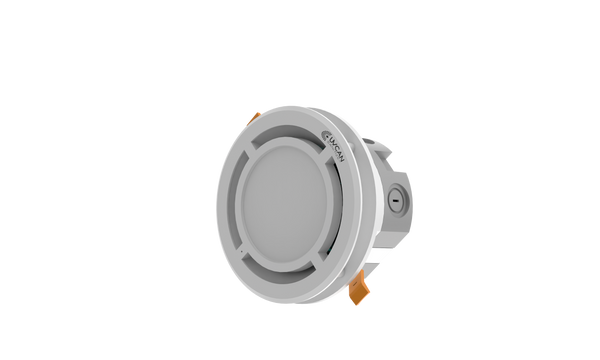

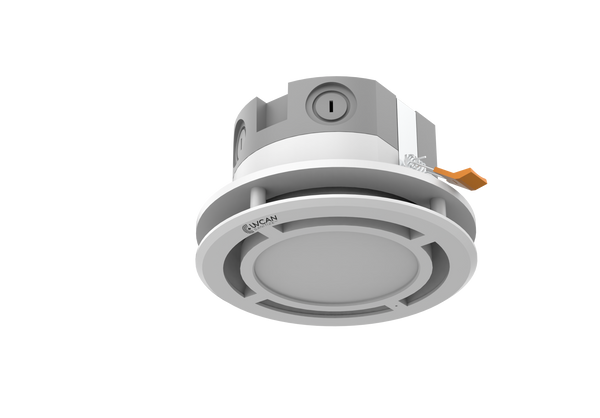

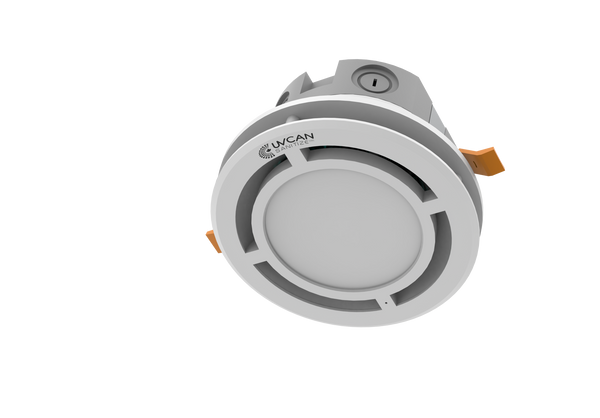

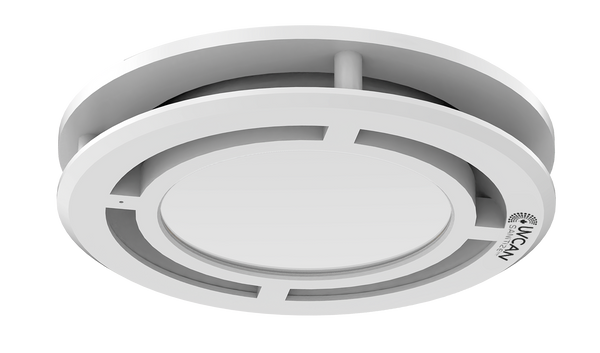

Cyclamen is a UV-C air chamber and conventional LED lighting hybrid unit. Cyclamen is designed to help reduce germs and bacteria in spaces up to 5-6 m2 or one device for every 5-6 m2.
It is an effective, discreet, and convenient recessed lighting solution for a variety of buildings and industries. As the air cycles through the fan at a rate of 8.1 CFM per device, UVC lights contained inside reduce germs and bacteria in the air. Remove your old downlight and install the new one; it’s that simple.
For commercial and industrial use.
⚠*Please note: WARNING – UV radiation emitted from this device. Unintended use of the device, or damage to the housing, may result in exposure to ultraviolet radiation. Avoid exposing skin and eyes to ultraviolet radiation; may cause irritation. Read the label and any operating manual before using.
Features
- Continuous 275nm circulation
- Long-lasting and durable UVC LEDs last 10,000 hours
- Clean Air Deliver Rate (CADR) rate of 8.1 CFM per device

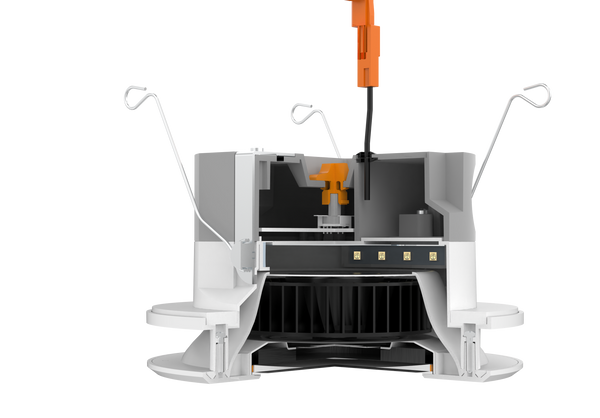

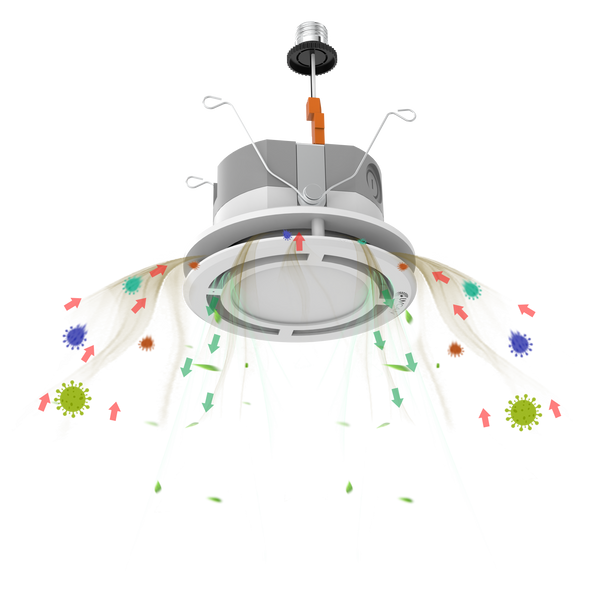

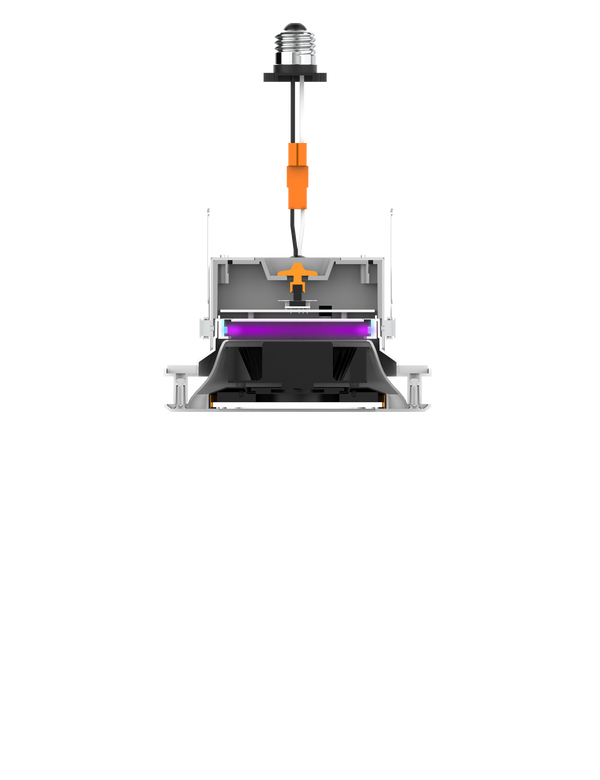

- Fan circulates air through UVC LED chamber
- Install one unit for every 5-6m2 or 53.8-64.6 ft2
- Switch between lighting only, UVC mode only, or both

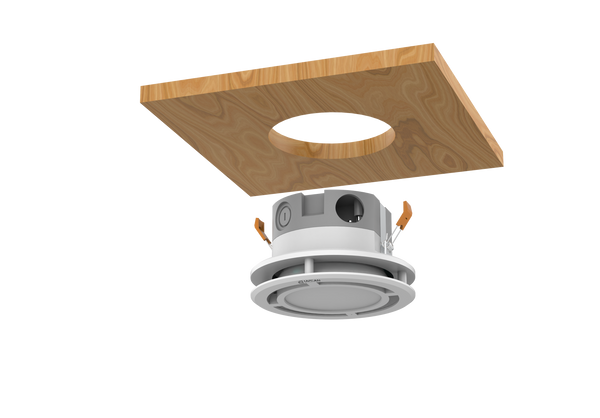

- Fits into 5” or 6” ceiling holes

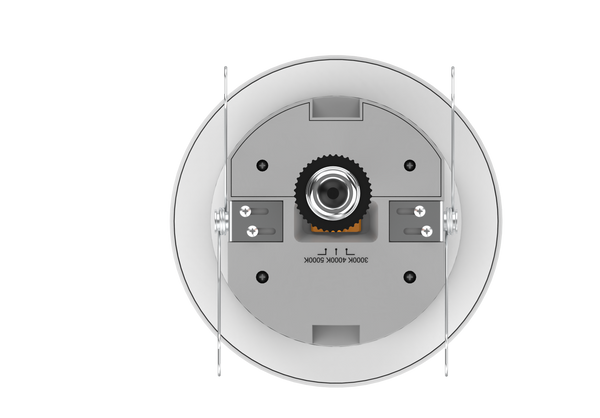

- Adjustable colour temperature: 3000K, 4000K, 5000K
Benefits
- UVC lights reduce germs in the air
- No UVC leakage: Complies with IEC 62471 RG0 standard
- Room occupancy and activities can continue below device
- Easily and discreetly replaces existing downlights
- Low noise output at 31.2 dB (1 meter away)
- UVC LEDs are mercury-free
Applications

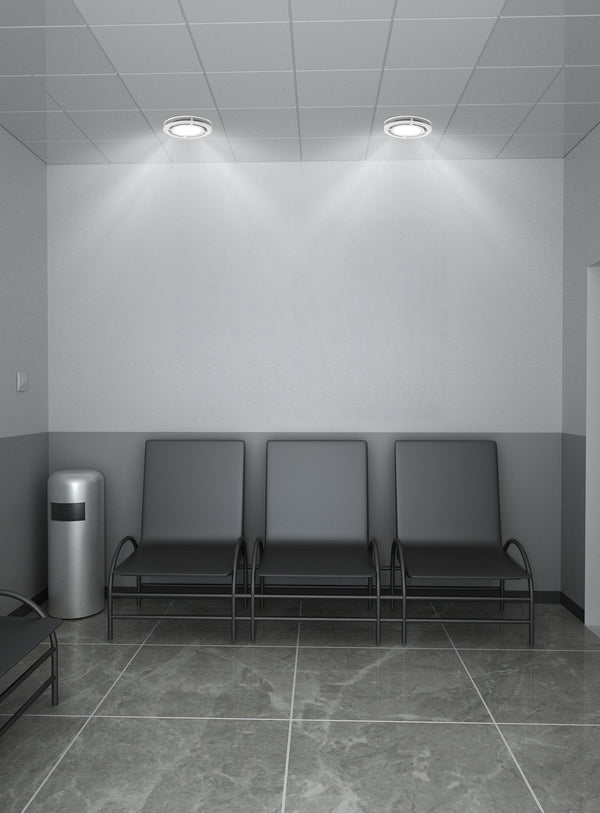

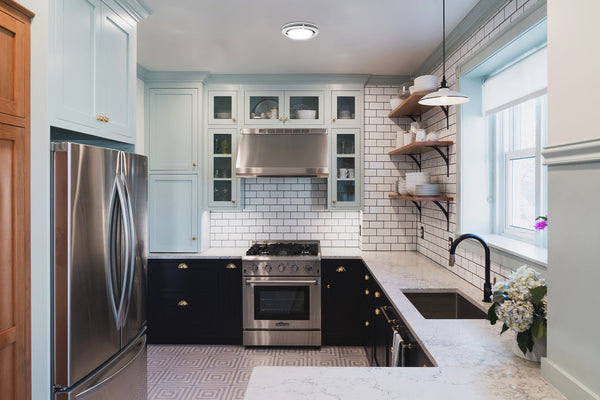

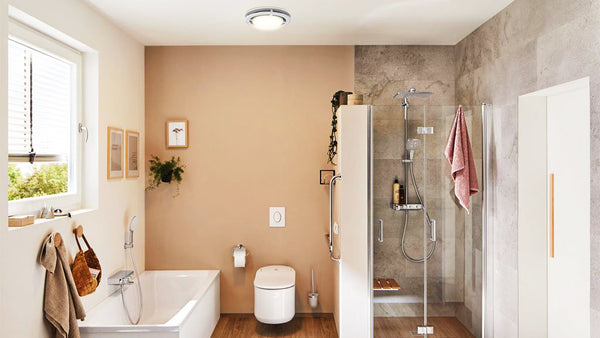

CYCLAMEN is suitable for occupied spaces such as:
|

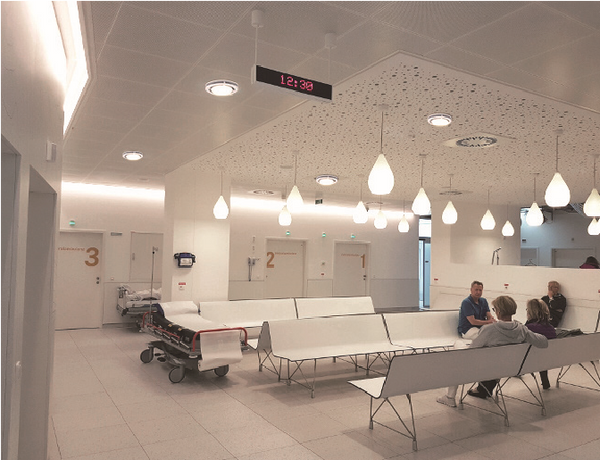

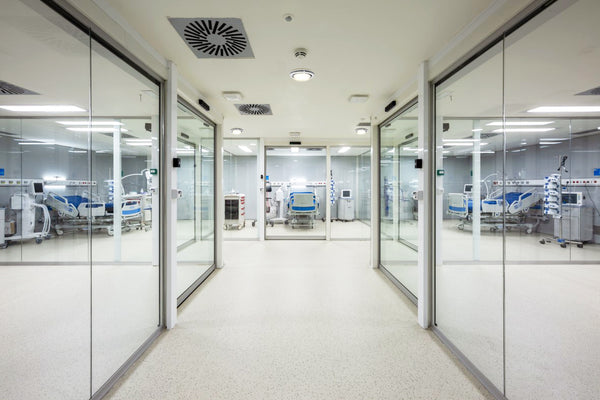

Hospital |

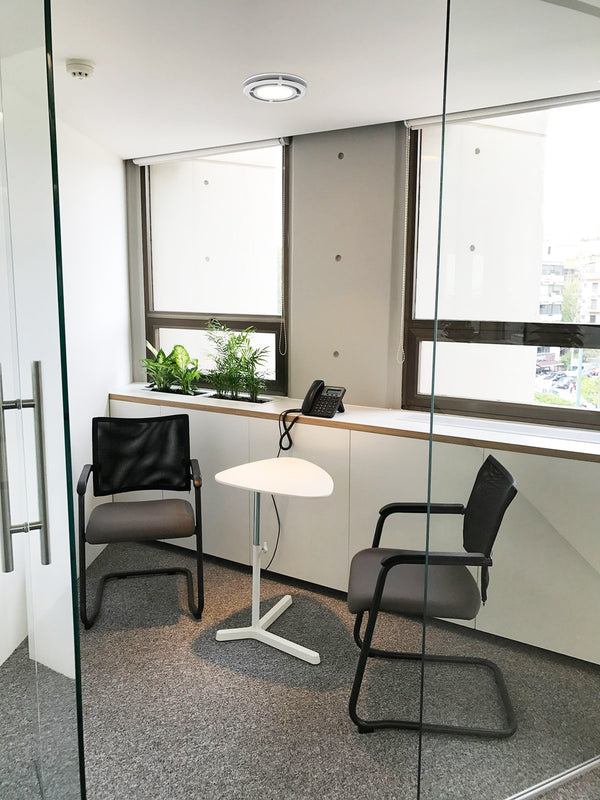

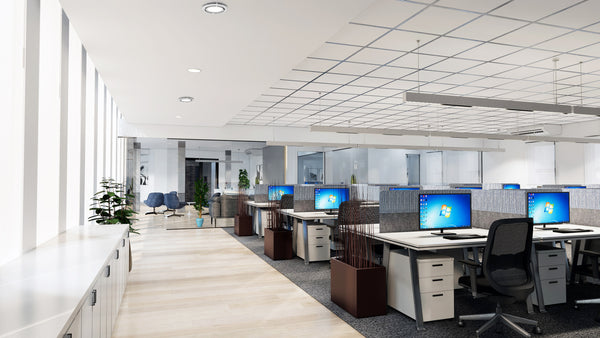

Office |

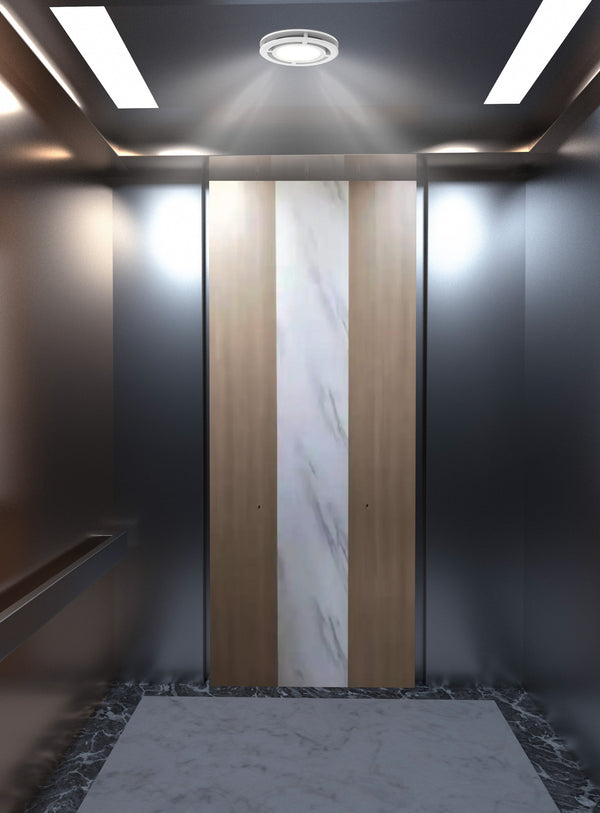

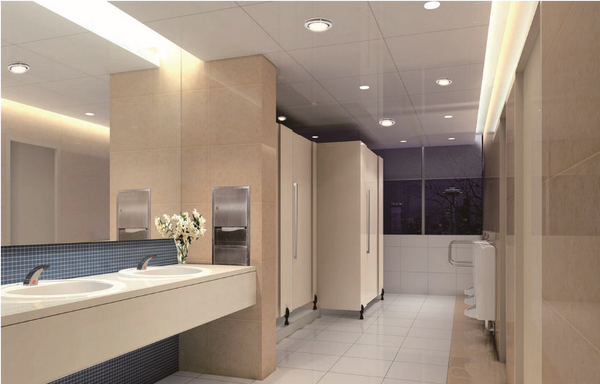

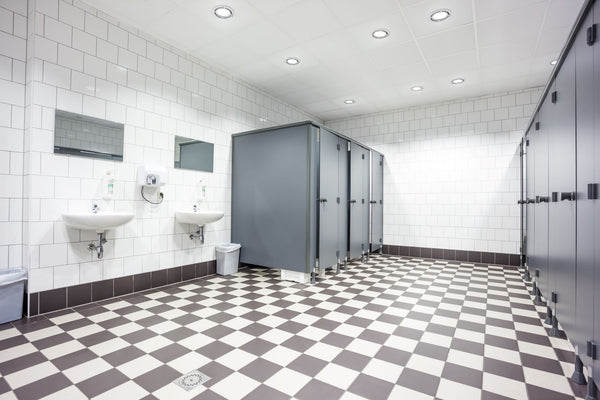

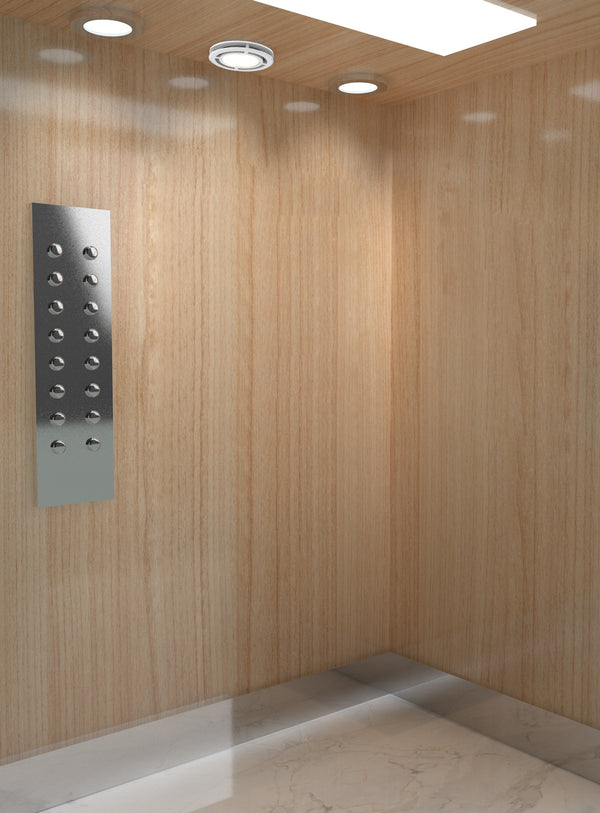

| Elevator | Washroom |
|
Laboratory |
Library |
| Shopping Mall | Bank |

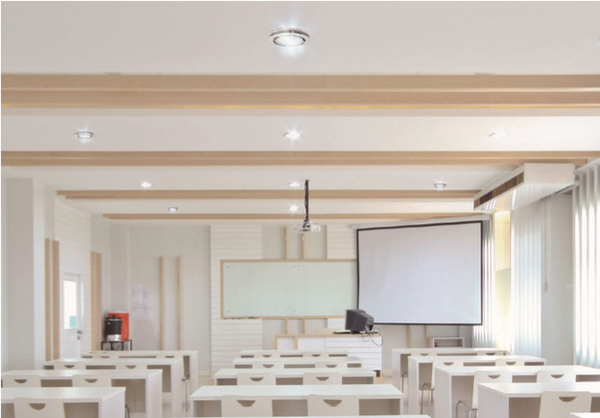

| School | Clinic |
Specifications
Fixture Parameters:
| Model No. |

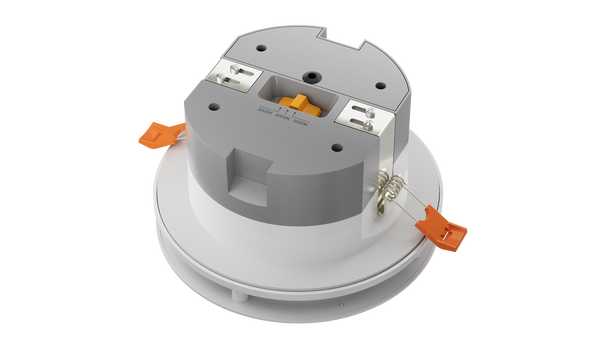

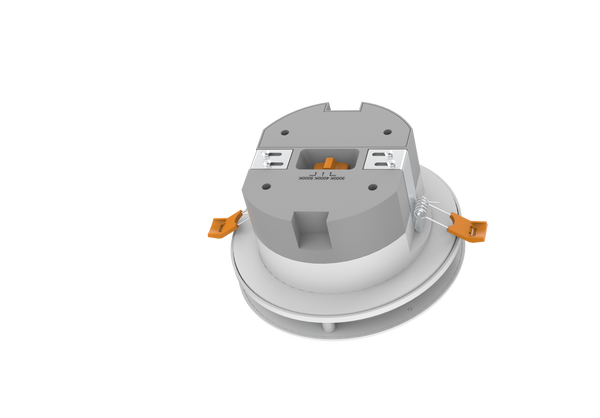

CYCLAMEN Retrofit |

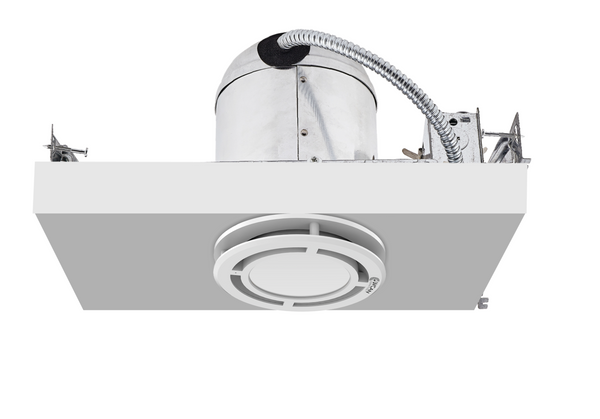

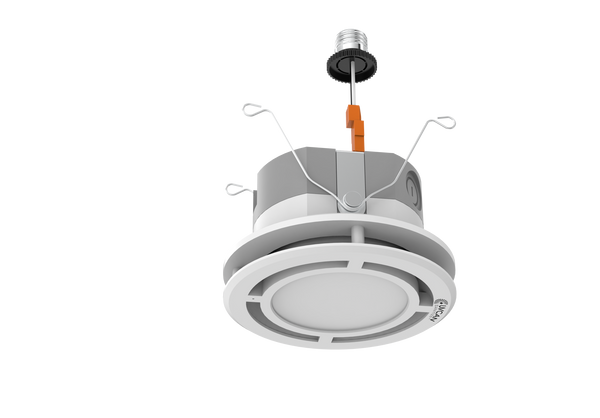

CYCLAMEN New Installation |
|---|---|---|
| Input Voltage (V) | 100-270V AC | 100-270V AC |
| Product Power (W) | 18W±2W | 18W±2W |
| CADR | 8.1 CFM (13.8m3/h) | 8.1 CFM (13.8m3/h) |
| Noise (Distance at 1m) | 31.2dB | 31.2dB |
| Recommended volume/device | 15.6 m3 | 15.6 m3 |
| Recommended area/device | 5-6m2 | 5-6m2 |
| Working temperature | -10℃~+40℃ | -10℃~+40℃ |
| Storage temperature | -20℃~+70℃ | -20℃~+70℃ |
| Hole Size | 5”/6” | 5”/6” J-BOX |
| Product Dimensions | Ø167mm*96mm | Ø167mm*96mm |

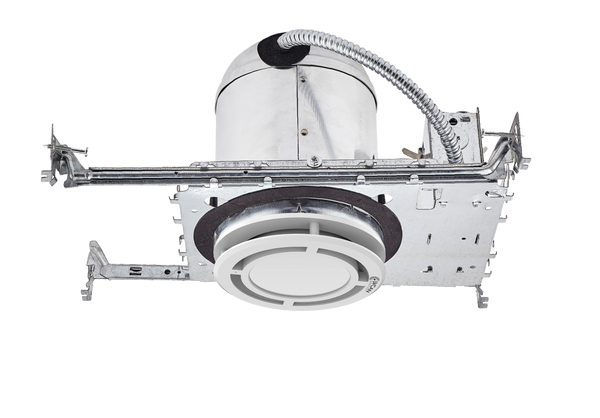

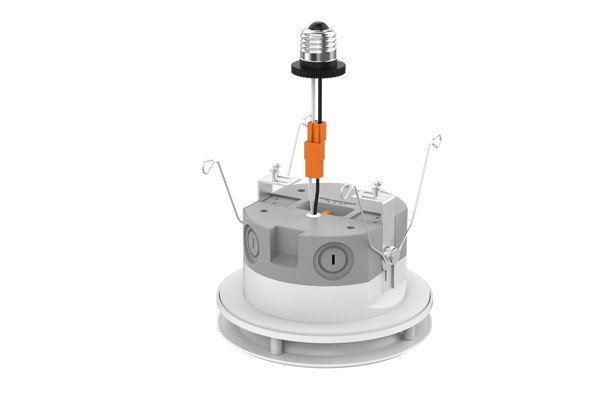

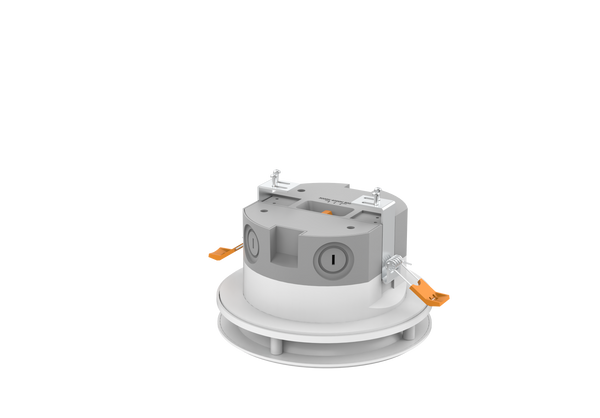

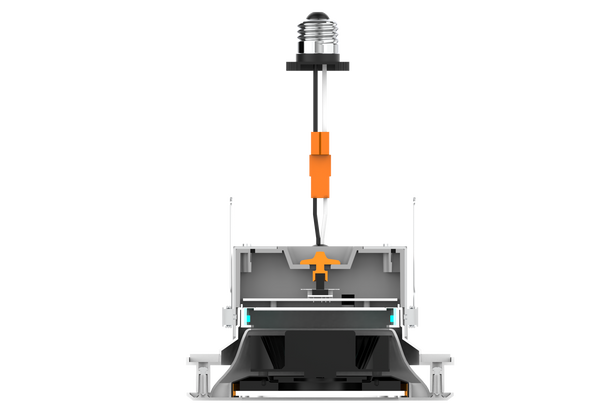

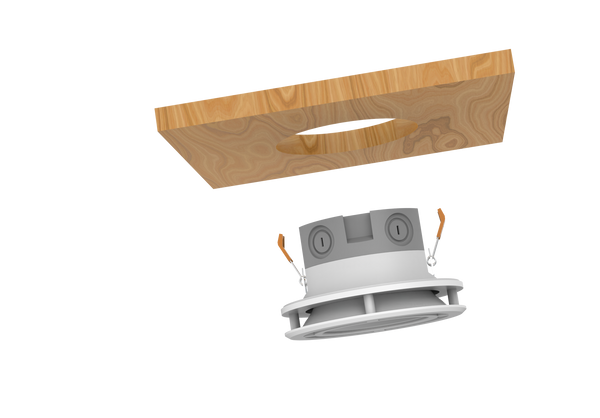

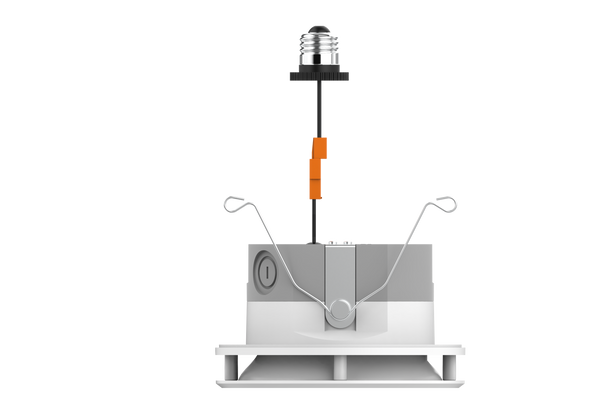

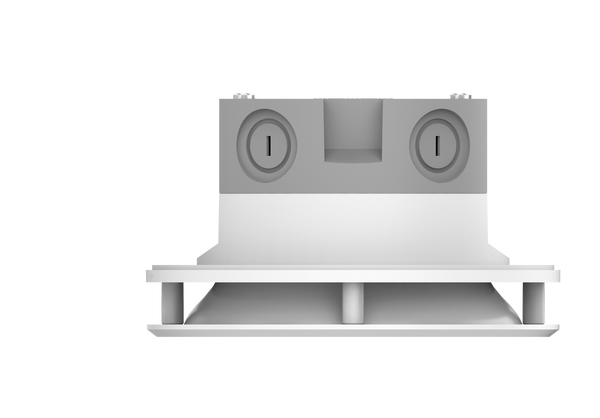

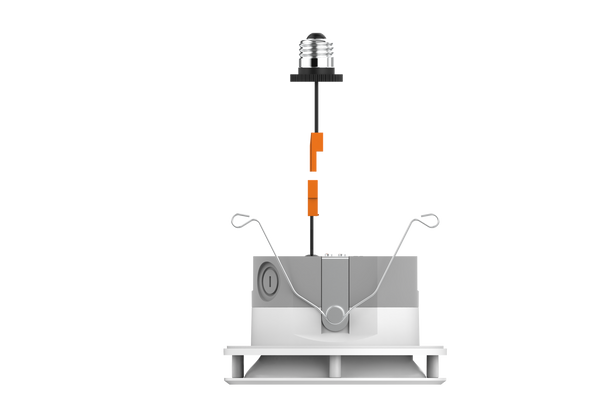

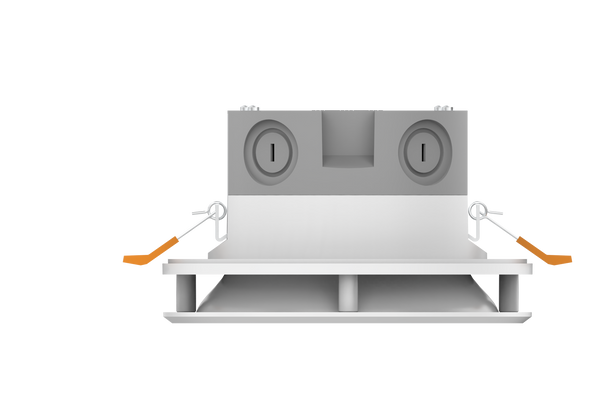

| Installation Method | Retrofit | New installation, E26 option |
| Warranty | 2 Years | 2 Years |
UVC System Parameters:
| Model No. |
CYCLAMEN |
|---|---|
| UVC System Power | 8W (UVC LED + Fan) |
| UVC Source Type | 0.6W UVC-LED 3939 |
| LED Chip QTY | 8Pcs |
| LED Lifespan | 10,000 hours |
| UVC Wavelength | 275nm |
| UVC Irradiance | 160mw |
| UVC Light Angle | 30° |
Regular LED Lighting Parameters:
| Model No. |
CYCLAMEN |
|---|---|
| LED Light Power | 10W |
| LED Chip Type | 2835 |
| Luminous Flux | 850Lm±10% |
| Adjustable CCT | 3000K/4000K/5000K |
| CRI | ≥80Ra |
| PF | ≥0.88 |
